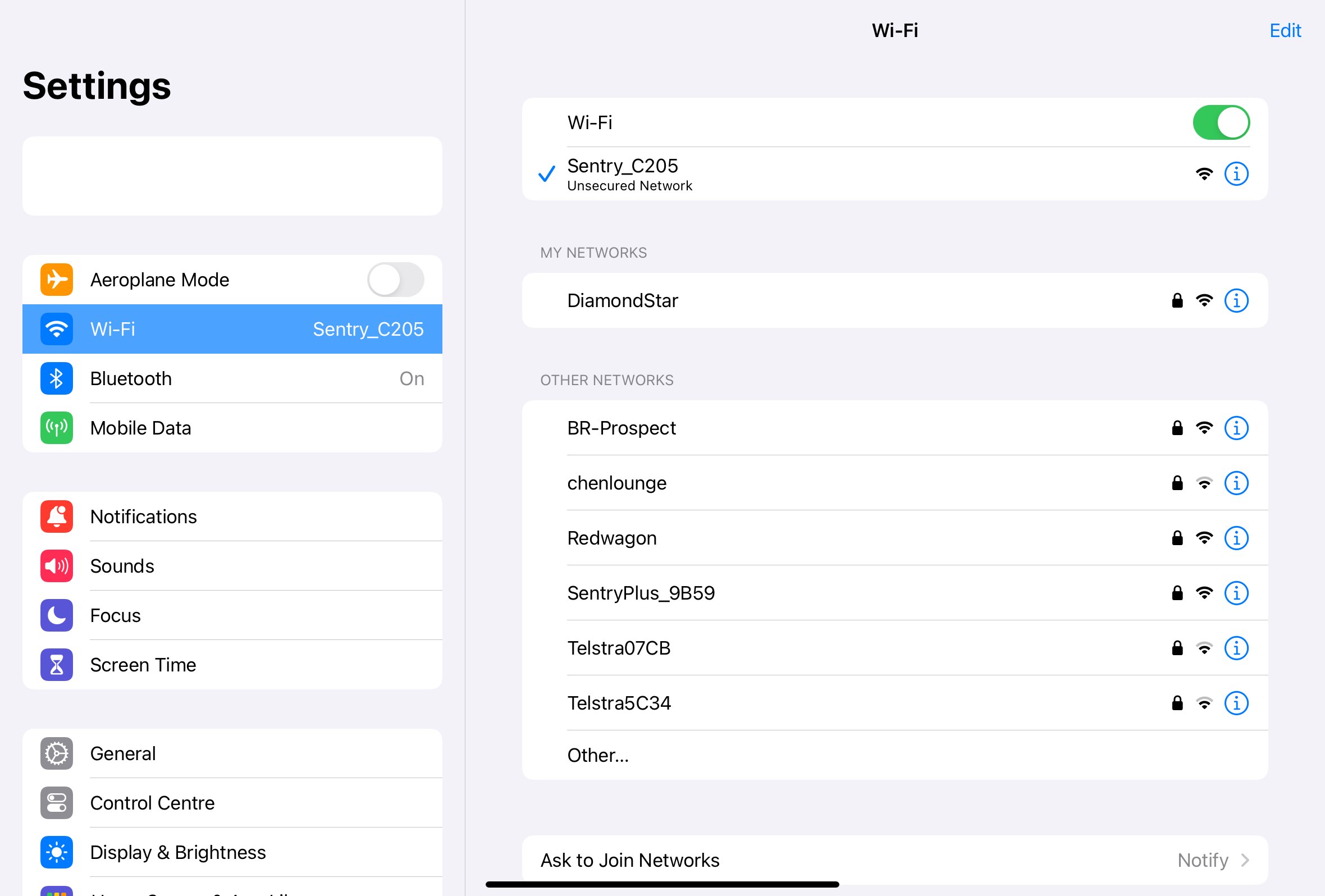

Connect your iPad or iPhone to the ADS-B receiver in the iPad's Settings → Wi-Fi.
(Note: A "No Internet Connection" warning is normal)
Troubleshooting
If you have confirmed that you are connected to the ADS-B receiver via WiFi and it is still not working follow these steps:

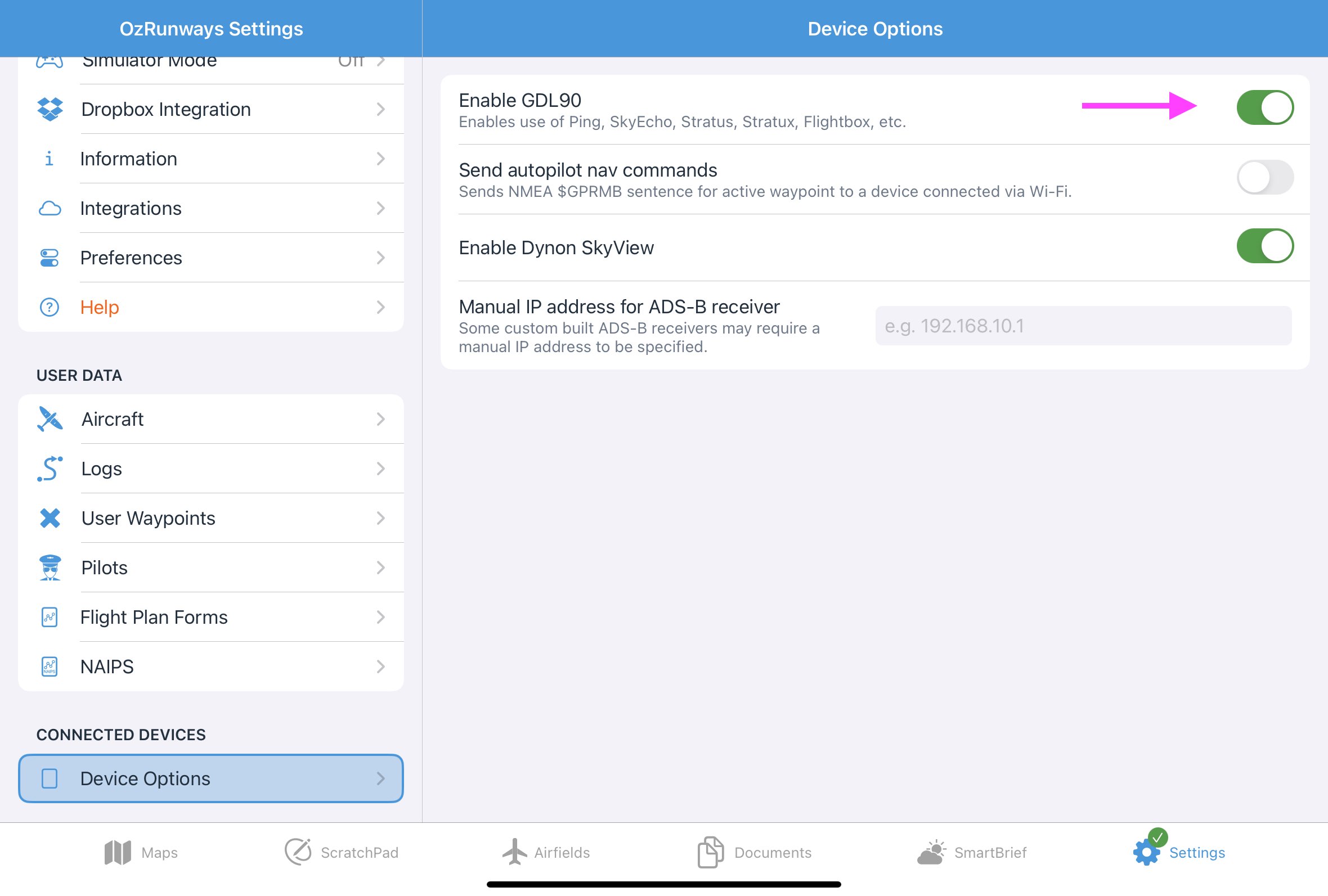

1. Open OzRunways and go to Settings → Device Options. Ensure that "Enable GDL90/Stratux/Flightbox" is switched on.

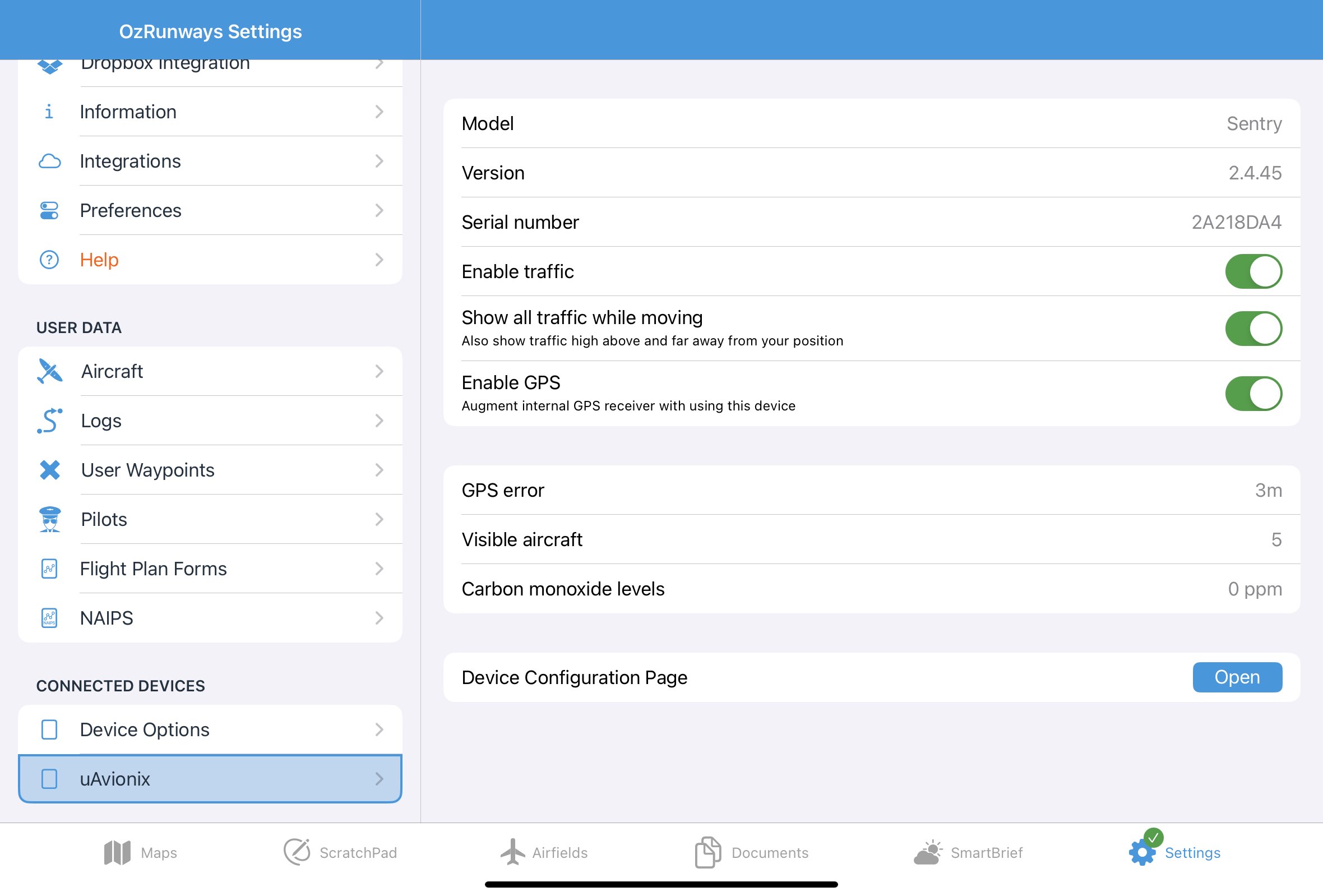

2. If you have a Sentry, SkyEcho, Stratus 3, Dynon DRX, or uAvionix Ping it will appear in the Settings menu underneath "Device Options". Tap to view device statistics including the number of currently visible ADS-B aircraft.
Your Device can only be connected to one WiFi network at a time. If you usually "hotspot" internet from another source (such as a phone) you may not be able to do this concurrently, unless you can connect to the hotspot using Bluetooth instead.
Viewing ADS-B traffic in OzRunways

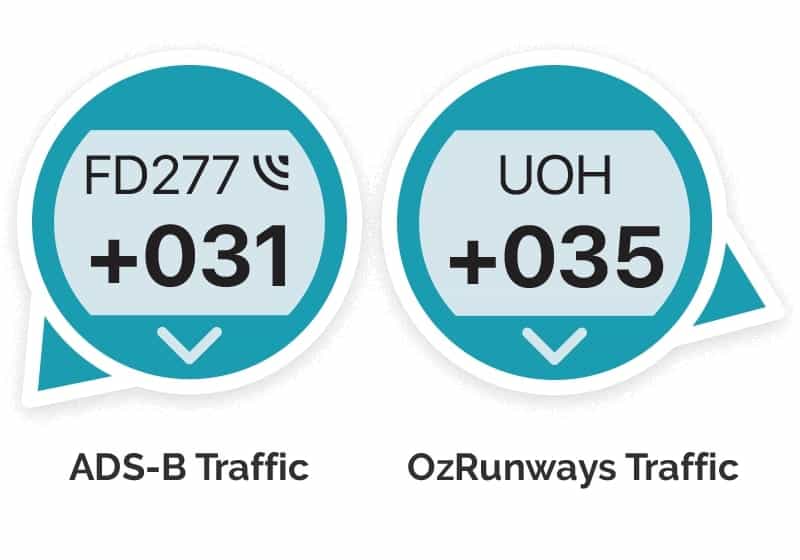

On the map page, ADS-B traffic is displayed just like regular OzRunways traffic but it will have a radio wave symbol in front of the callsign to indicate it is ADS-B sourced
